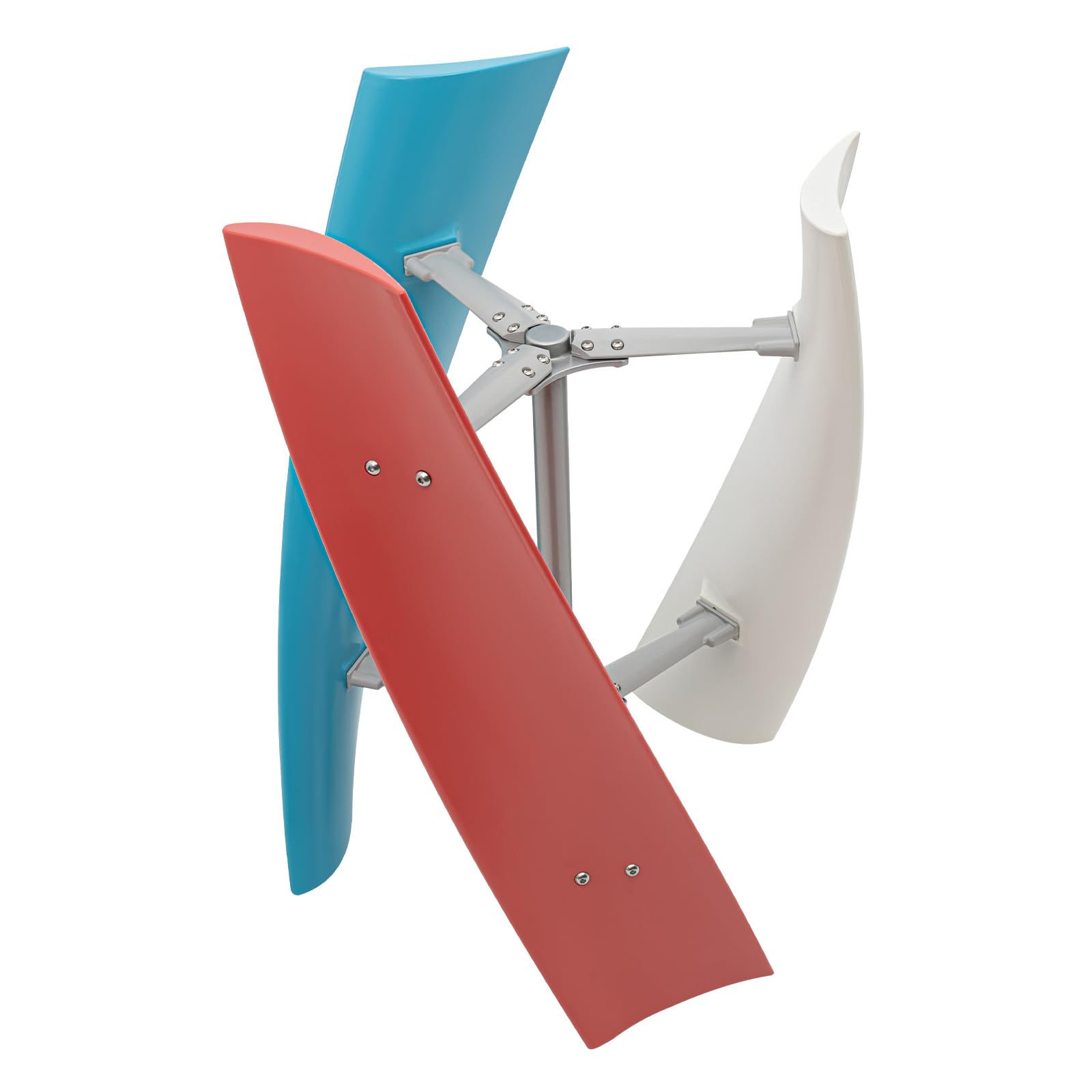

400W 12V Wind Turbine Generator Kit,Maglev generator Vertical Helix Charger Vertical Axis Wind Power Turbine with 3 Blades for Marine RV Road Industrial Energy Hybrid Solar Wind System

Brand: GOSHET

Color: White

Features:

• 【High-Quality Blades】The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life. It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.
• 【Efficient Power Generation】 The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life. In addition, the excellent heat-resistant coil ensures long-term stable operation of the equipment and improves overall output efficiency.
• 【Smooth Running】The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. The double bearing and low vibration also ensure more stable operation.
• 【Strong Wind Resistance】Due to its compact shape, low starting wind speed, and large windward area, the wind turbine can generate electricity at lower wind speeds.The horizontal rotation brings small wind pressure so that it can resist a super typhoon.
• 【Low Starting Wind Speed】Its starting wind speed is lower than other wind turbines, and the rising arc of power generation is gentle, so it can generate more power than others within a certain range.When the wind turbine reaches the maximum speed of 300rpm, it will automatically brake.

model number: FVU48

Part Number: FT461

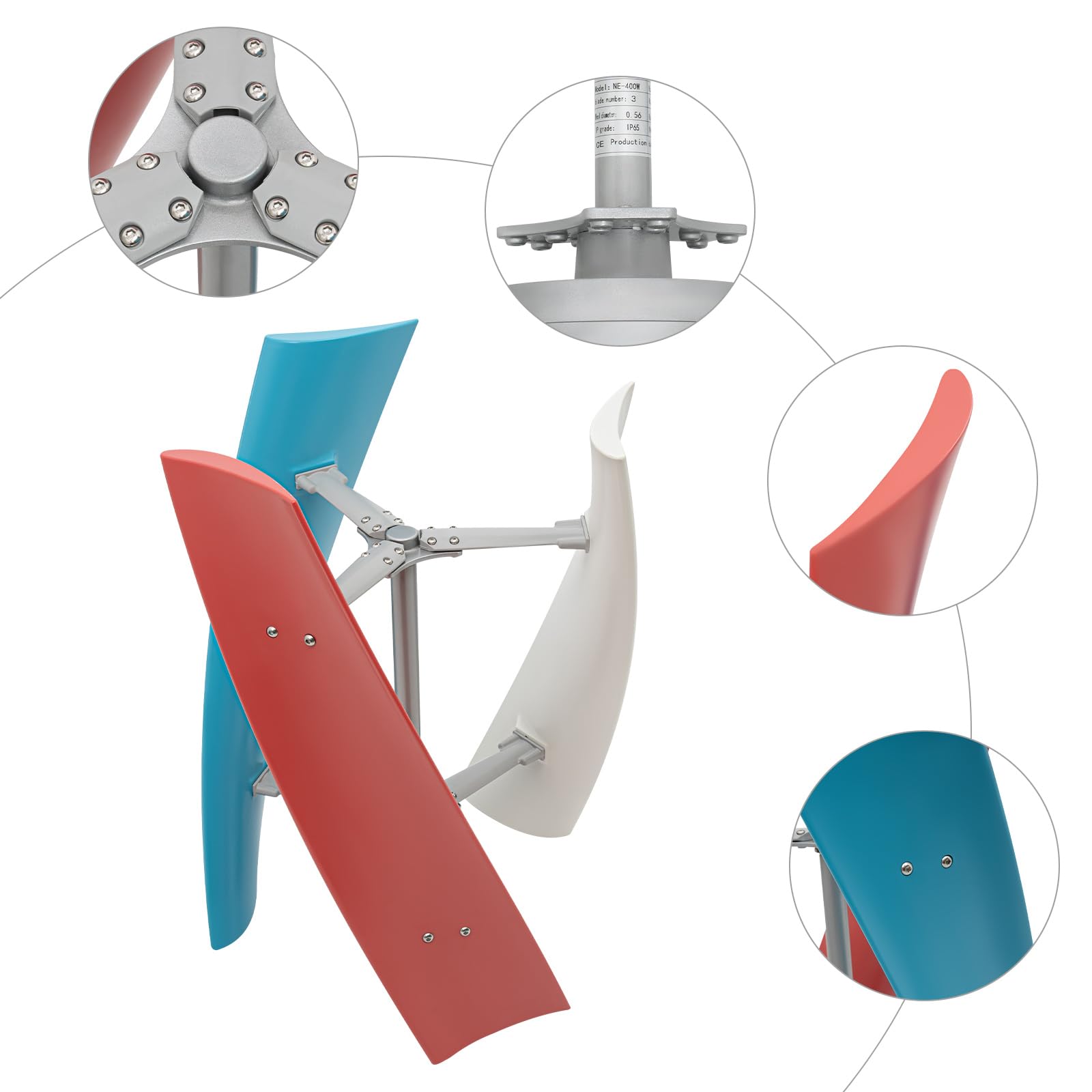

Details: Details

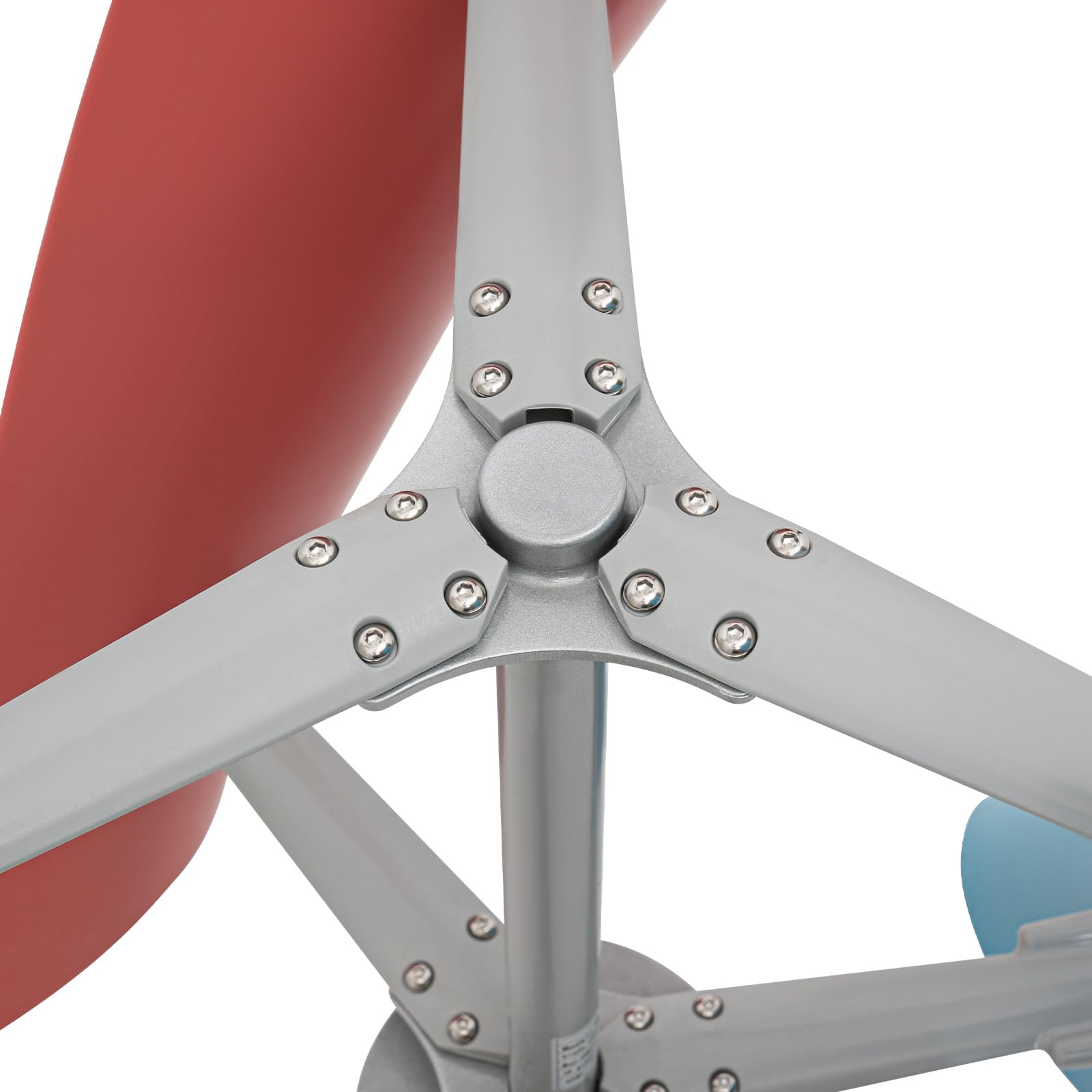

Vertical Blades: The main force point of the wind turbine is concentrated on the blade edge, so that it can effectively avoid blade shedding, fracture, or flying out.

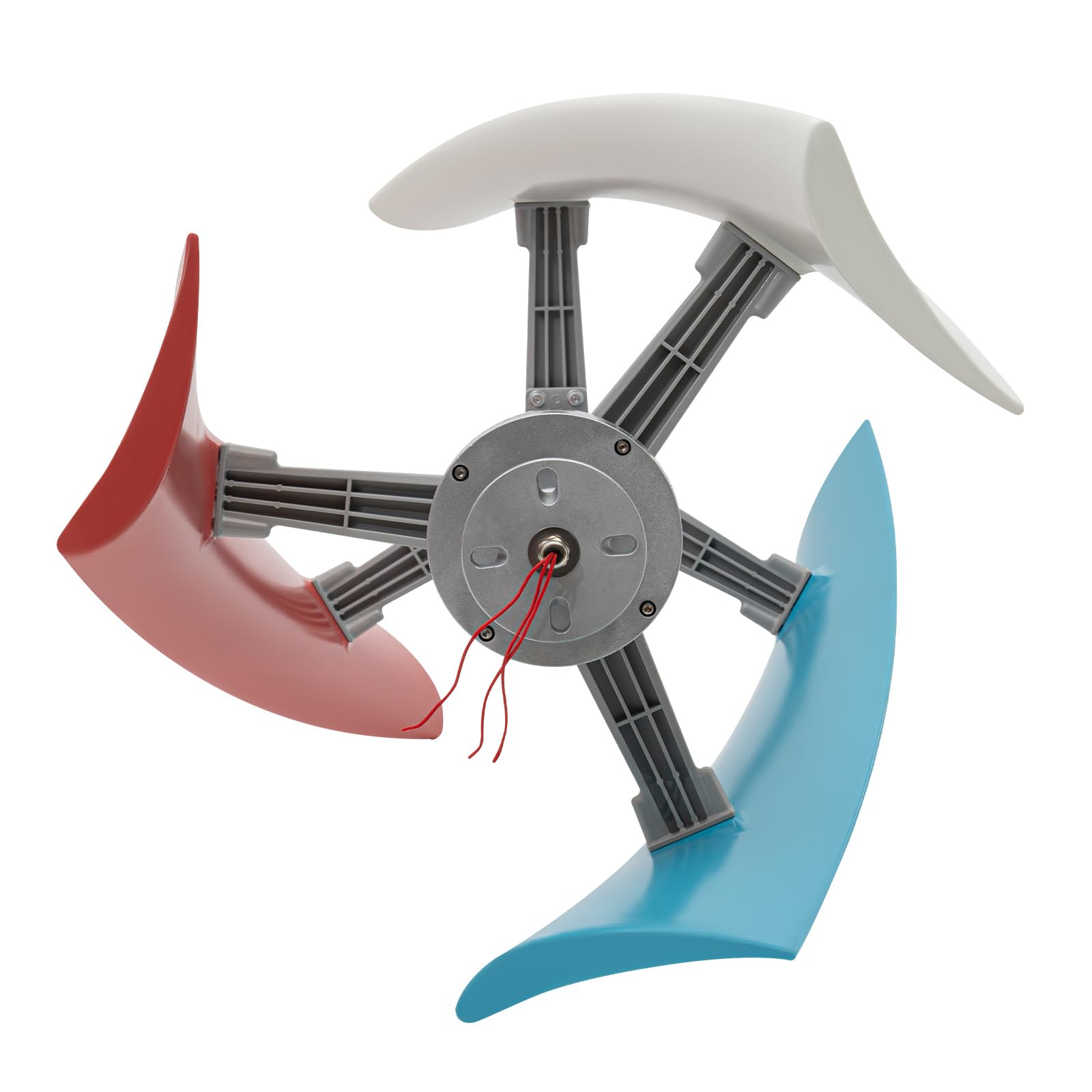

Three-phase AC Permanent Magnet Generator: The wind turbine with a low-torque and high-power intelligent tracking microprocessor can regulate current and voltage efficiently.

Specification
Controller System: Electromagnetism
Starting Wind Speed: 1.3m(12inch)/s
Cut-in Wind Speed: 2.5m(98inch)/s
Rated Wind Speed: 11m(433inch)/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/s
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s
Blades Quantity: 3 (with Different Colors)

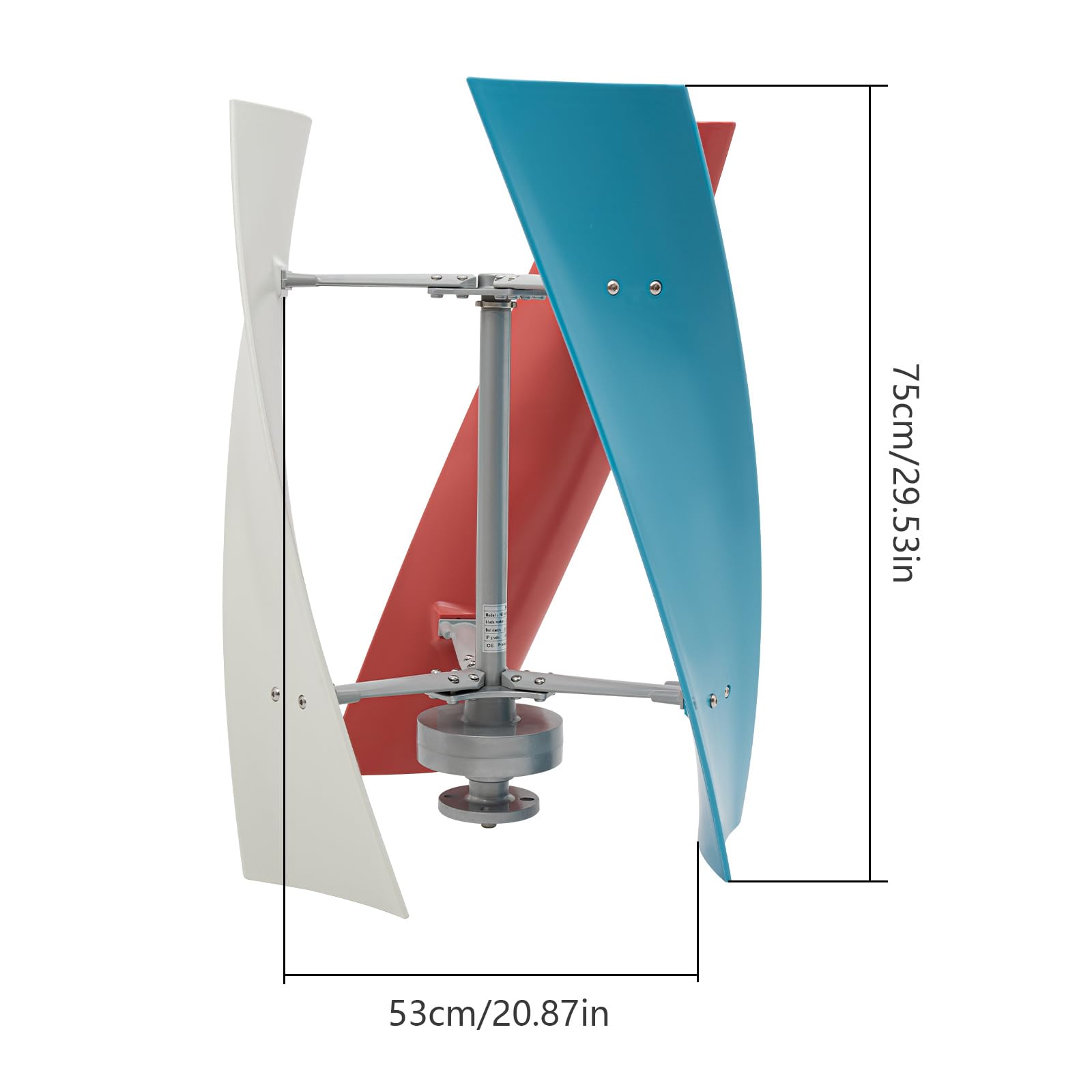

Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Voltage: 12V
Rated Power: 400W
Max Power: 450W
Generator Protection Grade: IP67
Work Environment Temperature: 25 to 45℃+
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Glass Fiber

Installation
1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.
2. Place the wind turbine vertically.
3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.
4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.
5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.
6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.
7. Professional installation is highly recommended if you have no previous installation experience.
8. You can watch the attached installation video as a reference.
9. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
