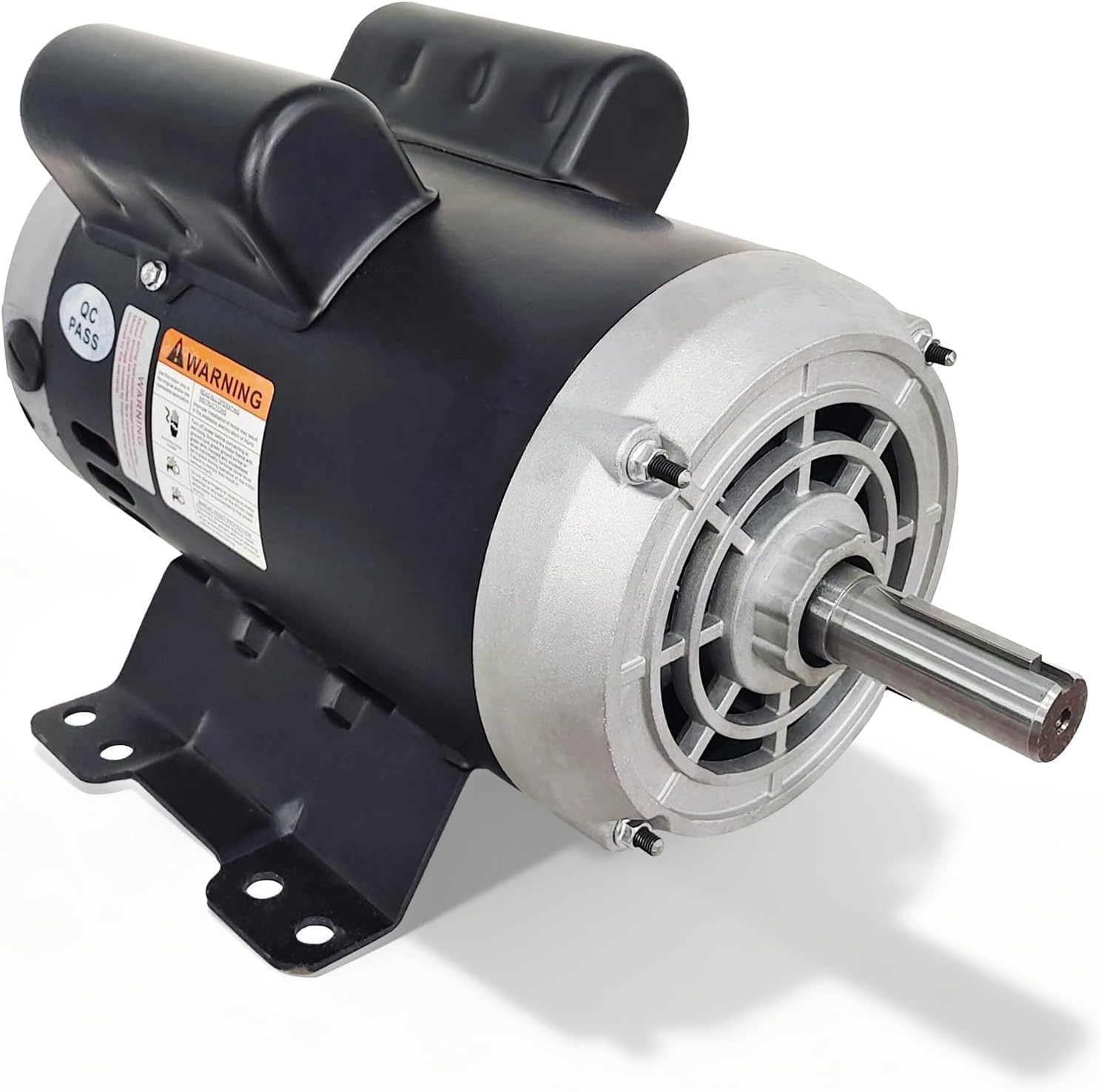

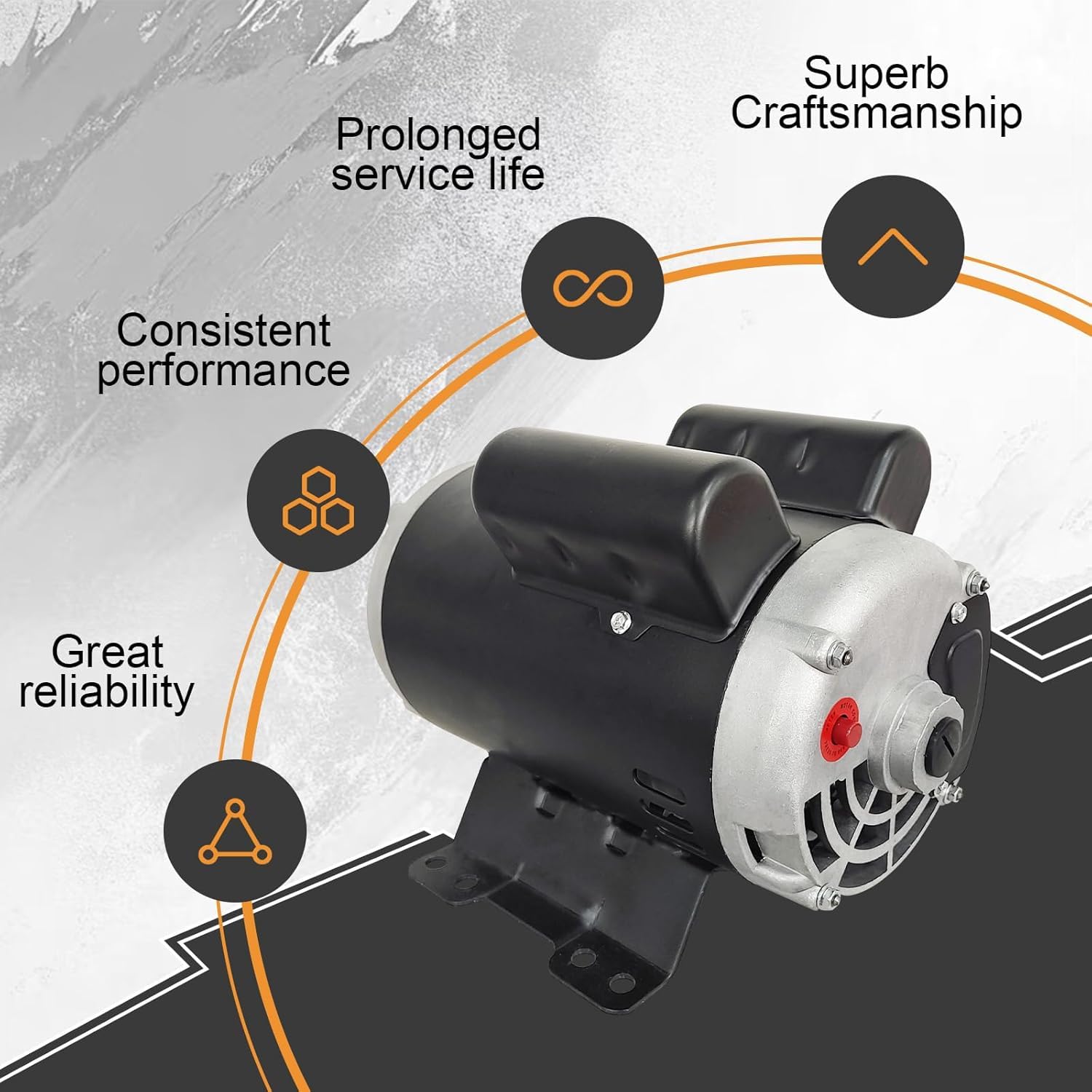

MAIXIUNIAN 23378805 5HP Air Compressor Motor 208/230V Compatible with Ingersoll Rand Single Phase, 184 Frame 3450 RPM 60Hz Electric Motor Replace# 23220064 54421193 56283138

Brand: MAIXIUNIAN

Features:

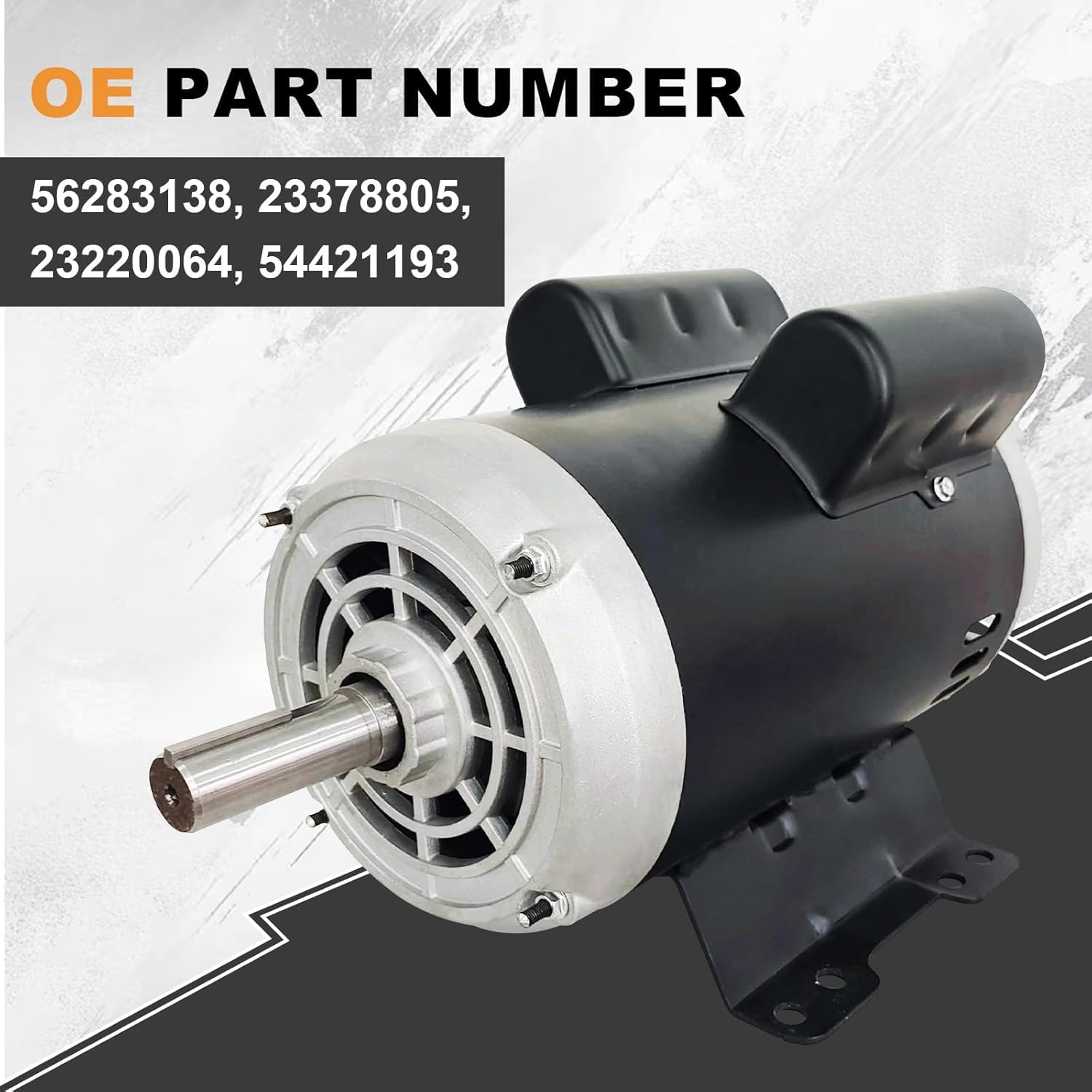

• 【OE Part Number】: 56283138, 23378805, 23220064, 54421193.

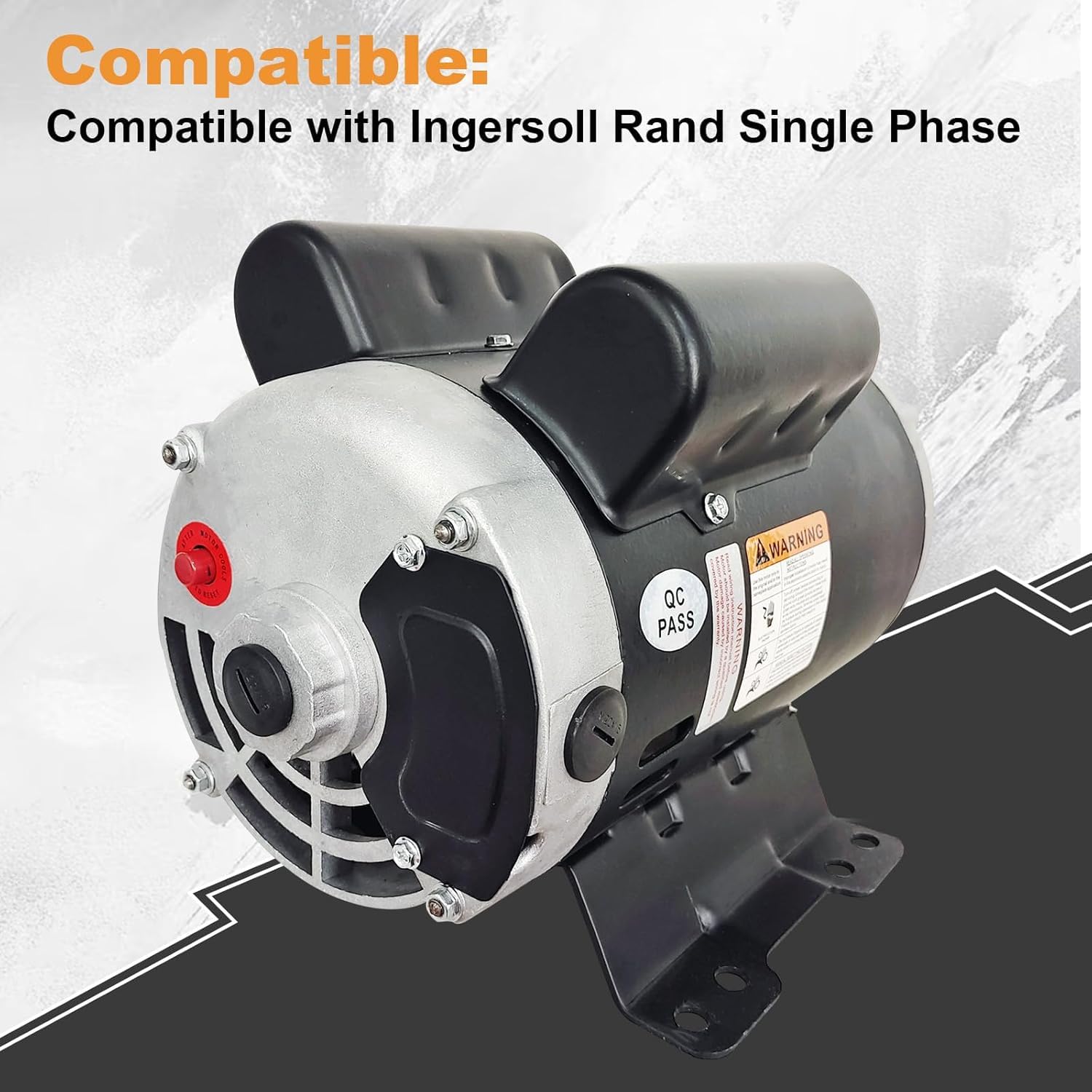

• 【Replacement Fitment】: Compatible with Ingersoll Rand Single Phase. Please make sure your original part number matches before purchasing to ensure fitment.

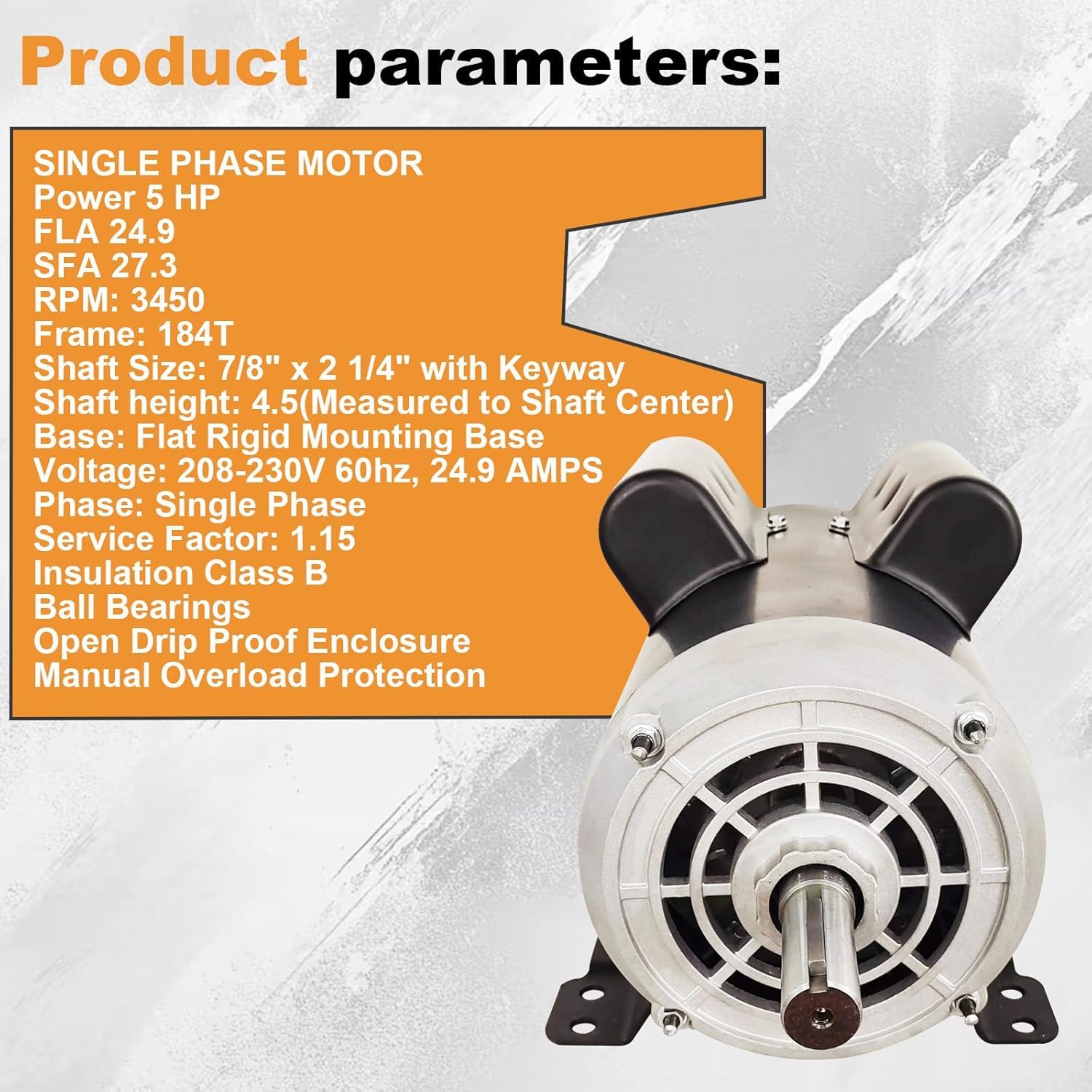

• 【Specifications】: SINGLE PHASE MOTOR, Power 5 HP; FLA 24.9; SFA 27.3; RPM: 3450; Frame: 184T; Shaft Size: 7/8' x 2 1/4' with Keyway; Shaft height: 4.5 (Measured to Shaft Center); Base: Flat Rigid Mounting Base; Voltage: 208-230V 60hz, 24.9 AMPS; Phase: Single Phase; Service Factor: 1.15; Insulation Class B; Ball Bearings; Open Drip Proof Enclosure; Manual Overload Protection.

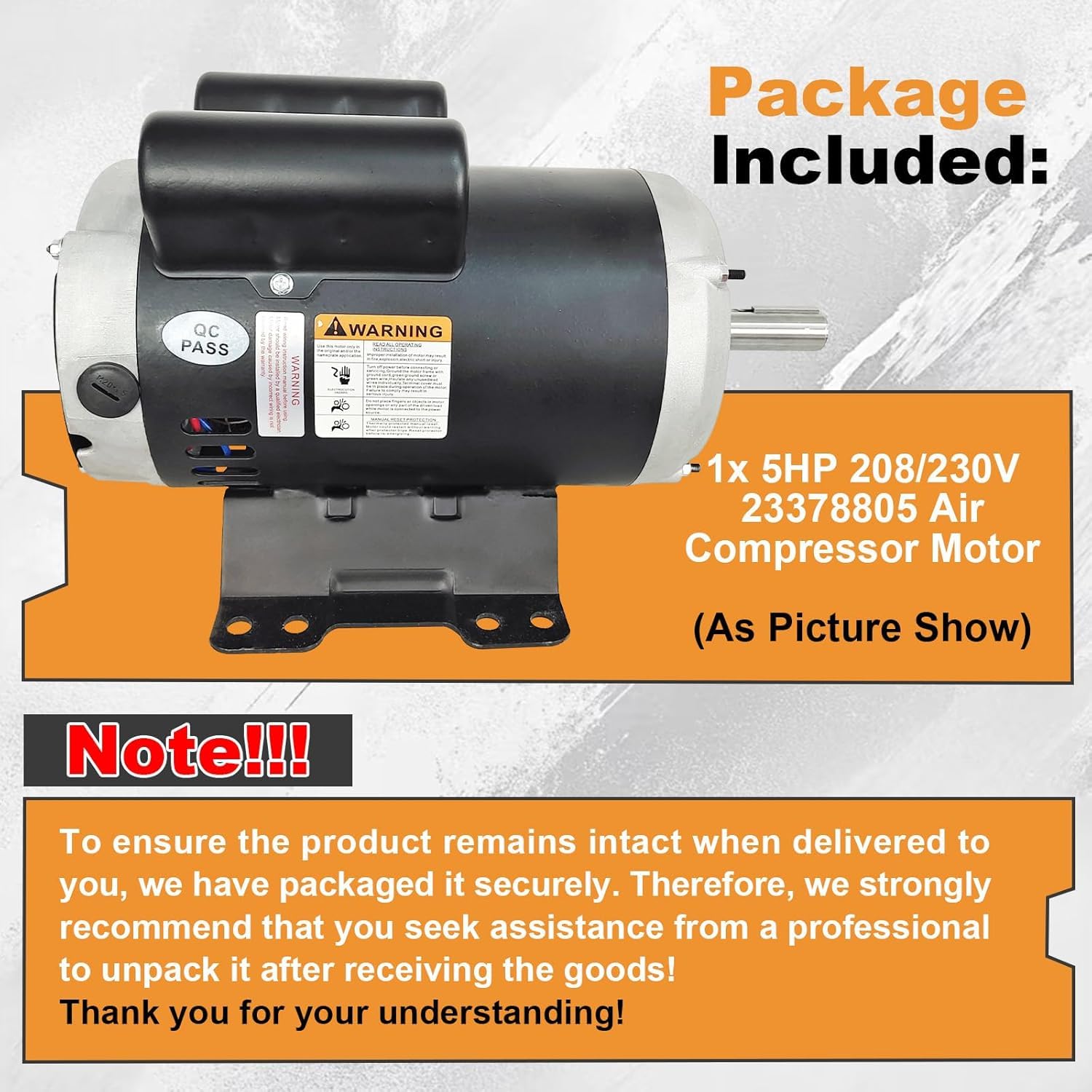

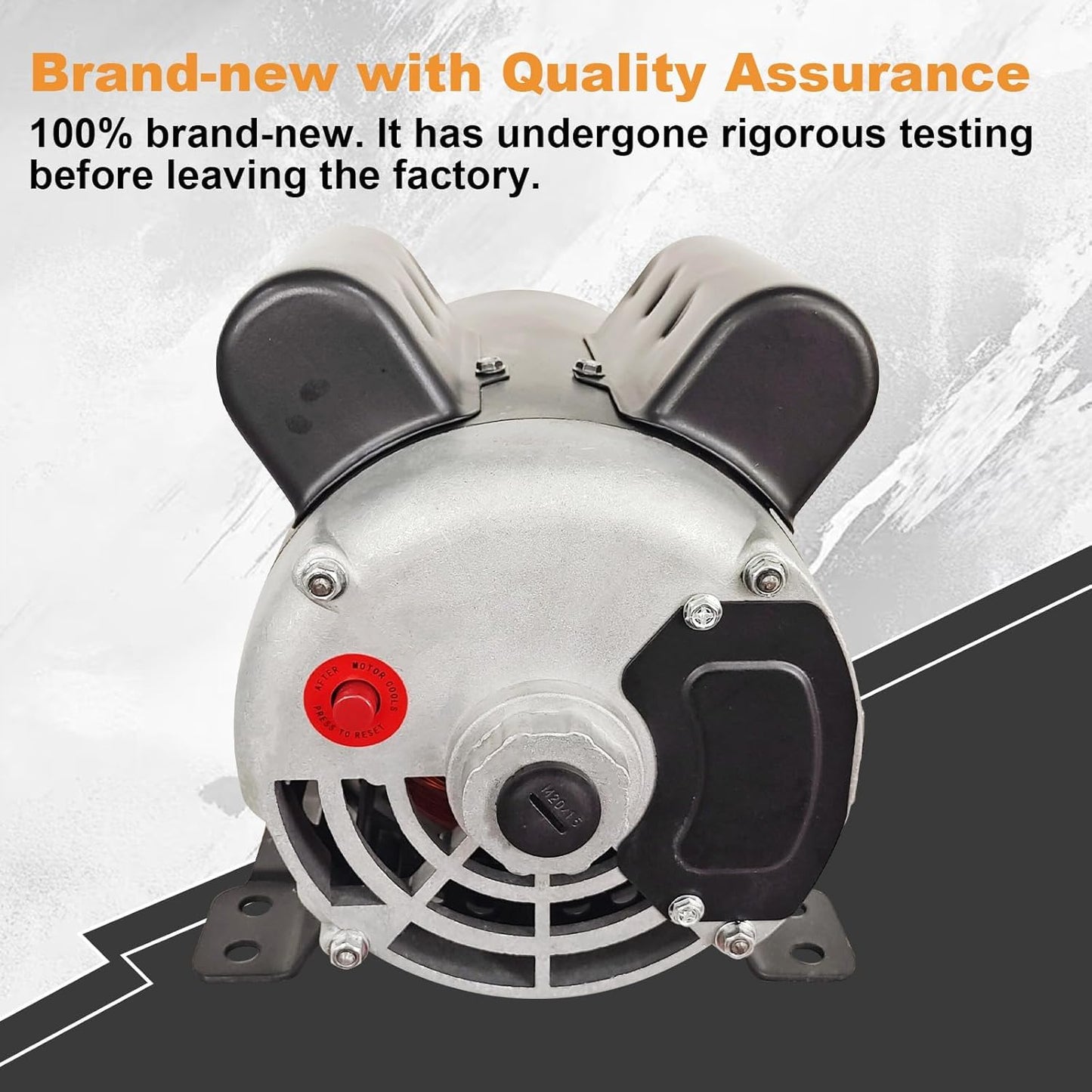

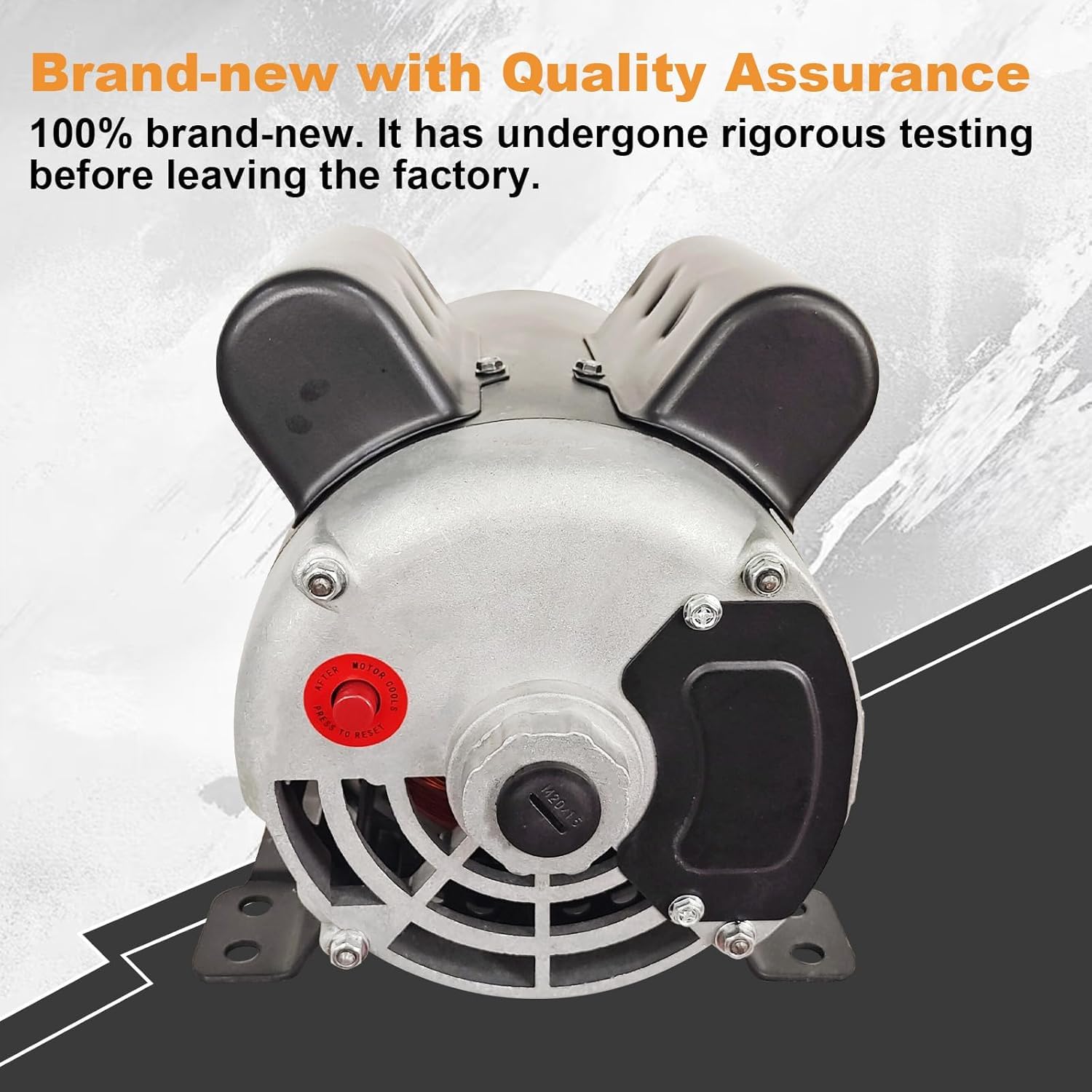

• 【High Quality Construction】: Delivers Outstanding Performance, Unwavering Reliability, And Precise Responsiveness. Its Well-Conceived Design And Premium-Grade Materials Ensure Long-Lasting Durability, Even Under Demanding Operating Environments. ⚠️⚠️【Note】: To ensure the product remains intact when delivered to you, we have packaged it securely. Therefore, we strongly recommend that you seek assistance from a professional to unpack it after receiving the goods! Thank you for your understanding!

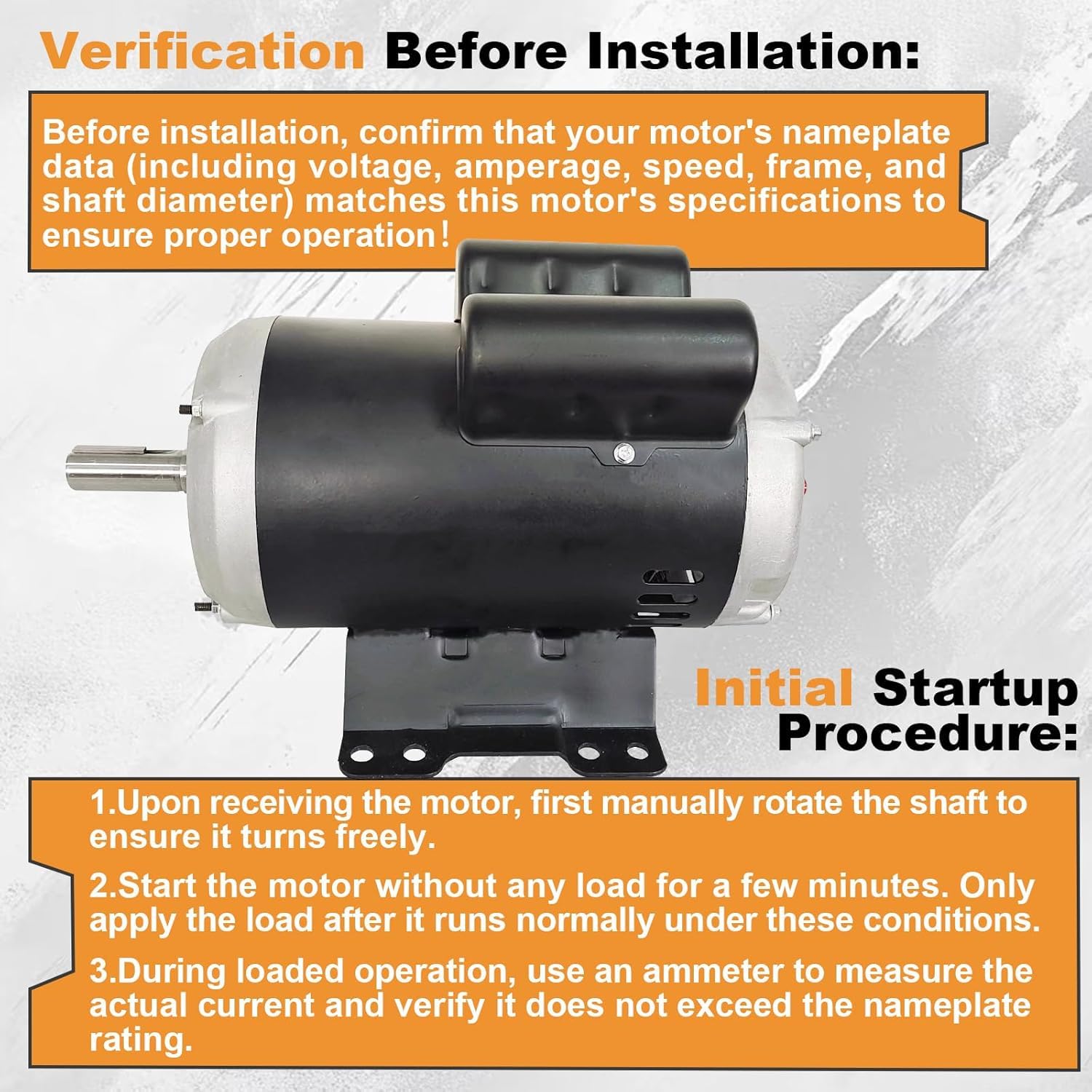

• 【Important Installation & Startup】: ⚠️⚠️ Verification Before Installation: Before installation, confirm that your motor's nameplate data (including voltage, amperage, speed, frame, and shaft diameter) matches this motor's specifications to ensure proper operation. Initial Startup Procedure: 1.Upon receiving the motor, first manually rotate the shaft to ensure it turns freely. 2.Start the motor without any load for a few minutes. Only apply the load after it runs normally under these conditions. 3.During loaded operation, use an ammeter to measure the actual current and verify it does not exceed the nameplate rating.

model number: 23378805

Package Dimensions: 18.5 x 12.5 x 11.0 inches
