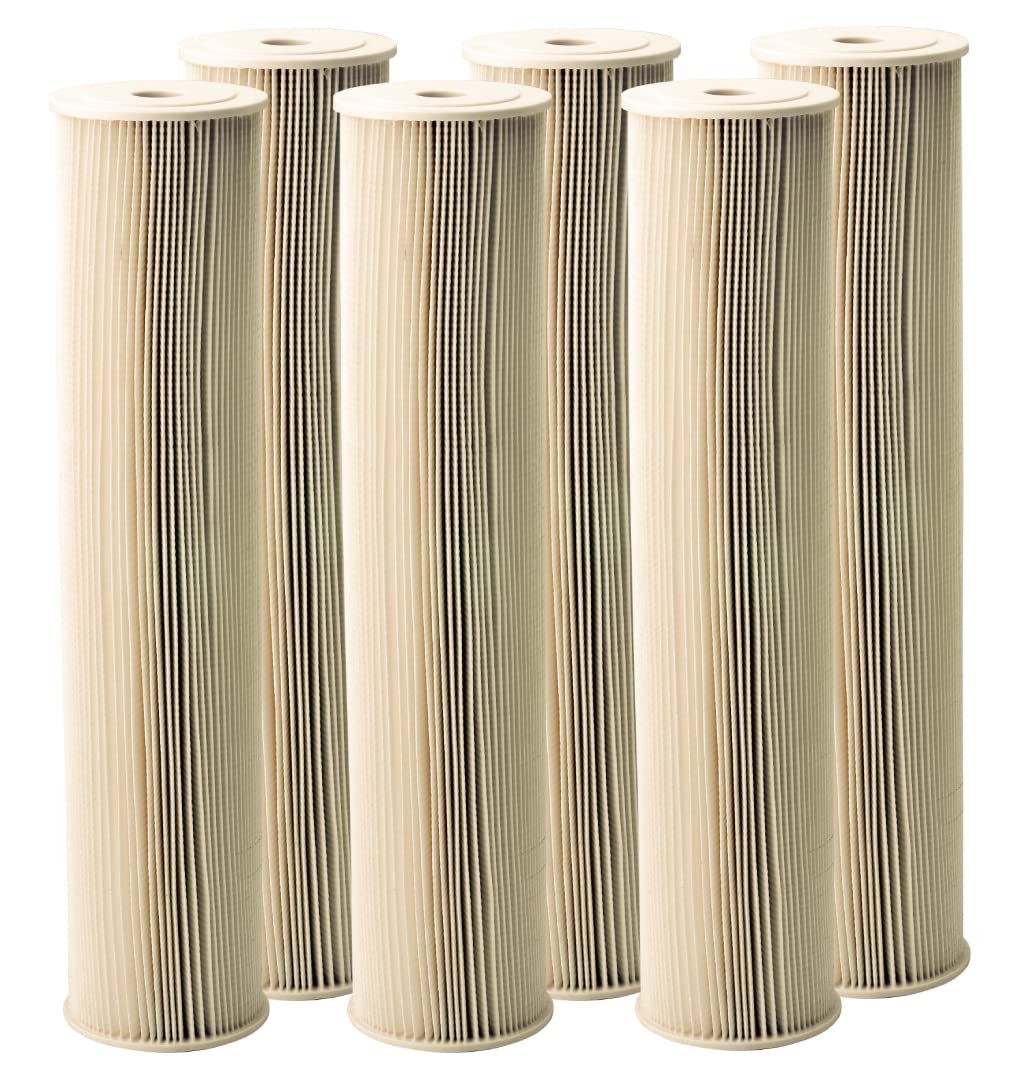

Pentair Pentek ECP5-20BB Big Blue Sediment Water Filter, 20-Inch, Whole House Pleated Cellulose Polyester Cartridge, 20" x 4.5", White End-Cap, 5 Micron, Pack of 6

Brand: Pentek

Color: White

Features:

• REDUCES SEDIMENT AND PARTICULATES - Pleated cellulose polyester media captures dirt, sand, silt, and rust down to 5 microns while maintaining high flow rates for whole house water filtration
• 36 SQUARE FEET OF FILTER MEDIA - Pleated design provides significantly more surface area than standard cartridges for extended dirt-holding capacity and longer filter life

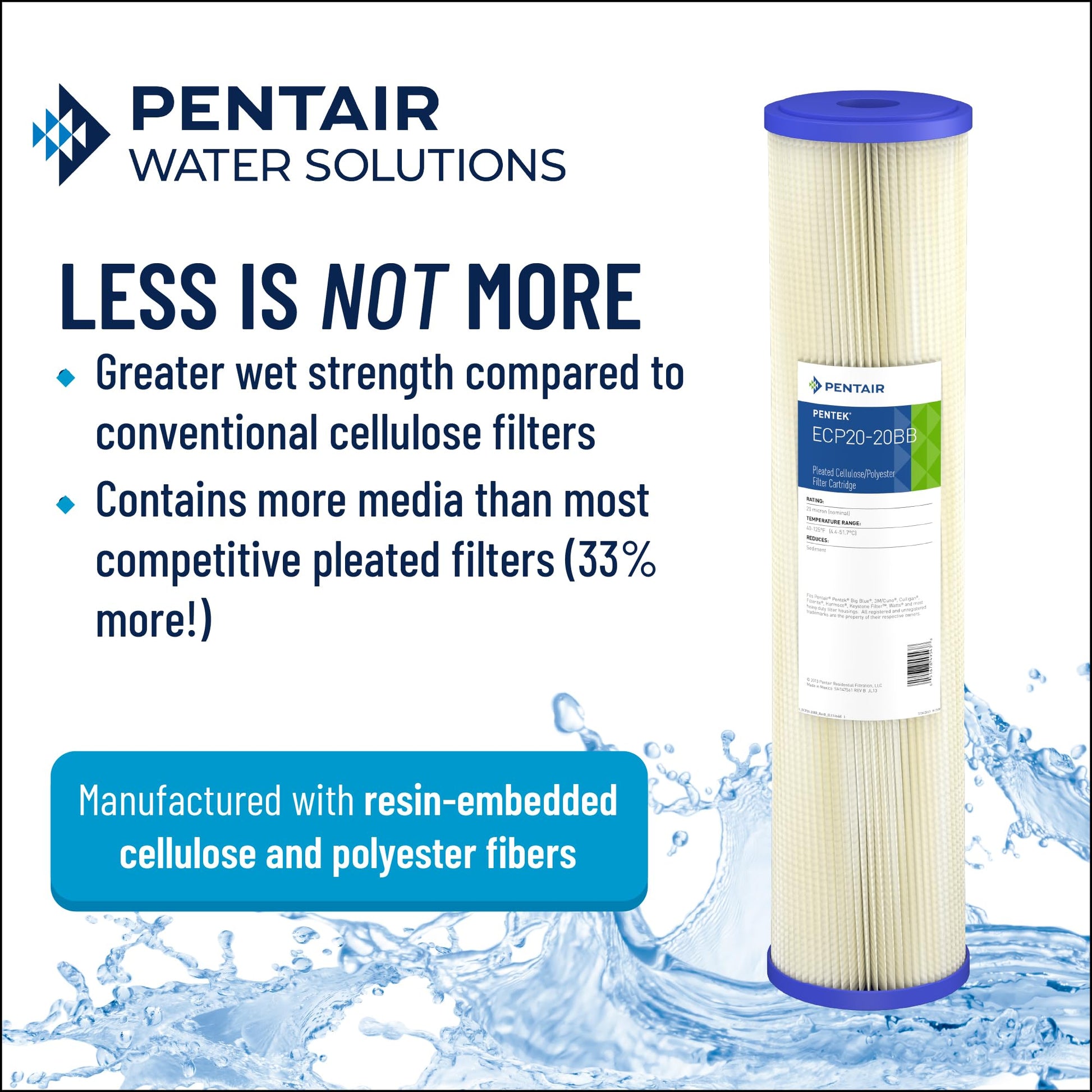

• SONICALLY WELDED FOR EFFICIENCY - Overlap seam is sonically welded to reduce internal bypass and improve filtration efficiency; resin-impregnated fibers provide higher wet strength than regular cellulose

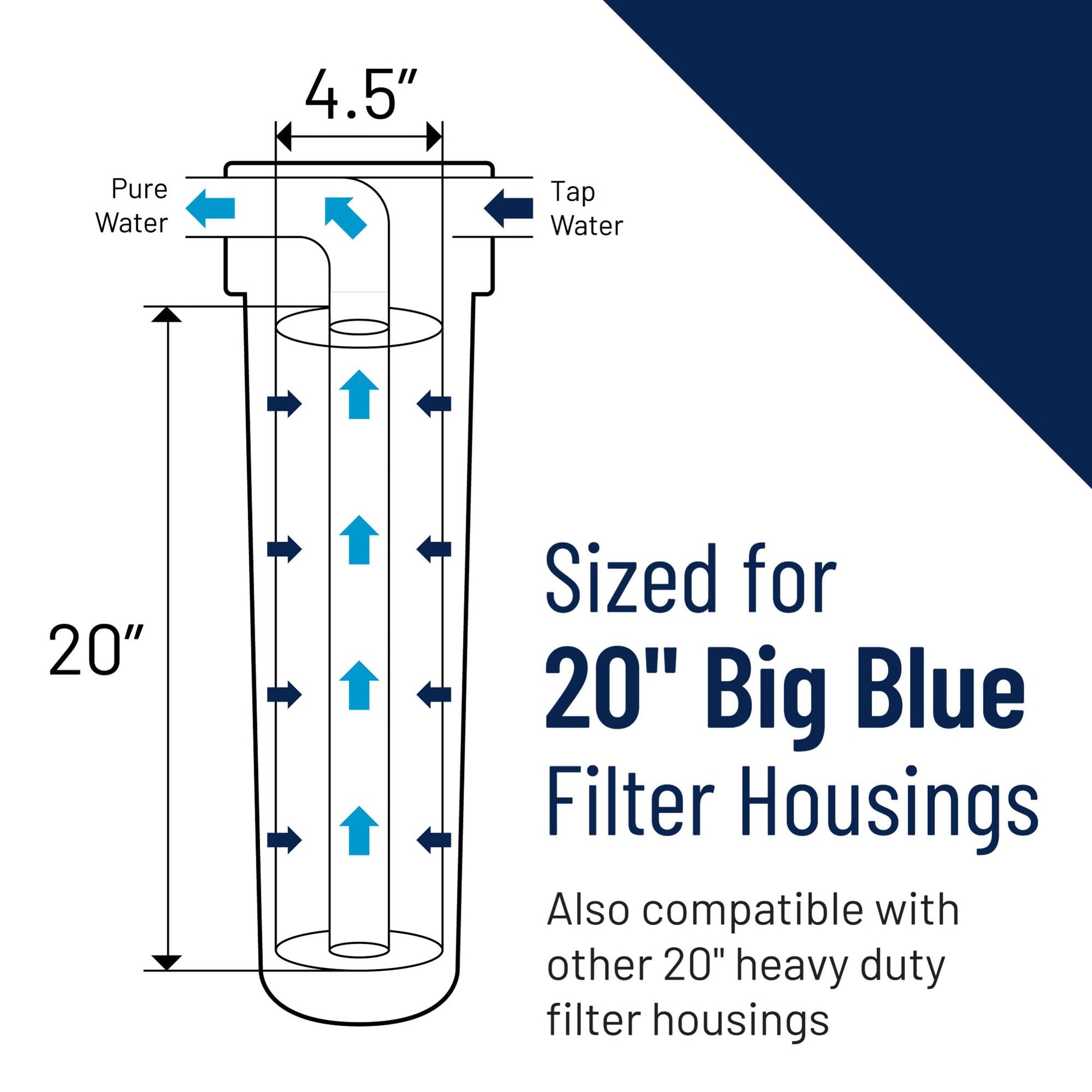

• FITS 20' BIG BLUE HOUSINGS - Drop-in replacement for any standard 20' x 4.5' Big Blue or heavy-duty filter housing; white endcap is color-coded for easy micron identification at replacement
• LOW PRESSURE DROP - Less than 1 psi at 20 gpm maintains strong water flow throughout your system; operating temperature range 40-125 degrees F; replace every 3-6 months

model number: ECP5-20BB

Part Number: 255494-43-APC

Details: The Pentair Pentek ECP5-20BB is a 5-micron pleated sediment filter cartridge designed for whole house water filtration in standard 20' x 4.5' Big Blue housings. The filter media is constructed from a blend of resin-impregnated cellulose and polyester fibers, providing higher wet strength than standard cellulose cartridges. The pleated design delivers 36 square feet of filter surface area, extending dirt-holding capacity and filter life compared to non-pleated alternatives.
The ECP5-20BB features a sonically welded overlap seam that reduces internal bypass for improved filtration efficiency. The cartridge is built around a polypropylene core for added structural strength, with polypropylene endcaps and gaskets for a secure seal. It is compatible with both chlorinated and non-chlorinated water supplies.
This cartridge operates at less than 1 psi pressure drop at 20 gpm, with a temperature range of 40-125 degrees F. The white endcap is color-coded for quick 5-micron identification during filter changes. Replace every 3-6 months or when you notice a decrease in water pressure.

Package Dimensions: 21.5 x 15.5 x 10.5 inches
