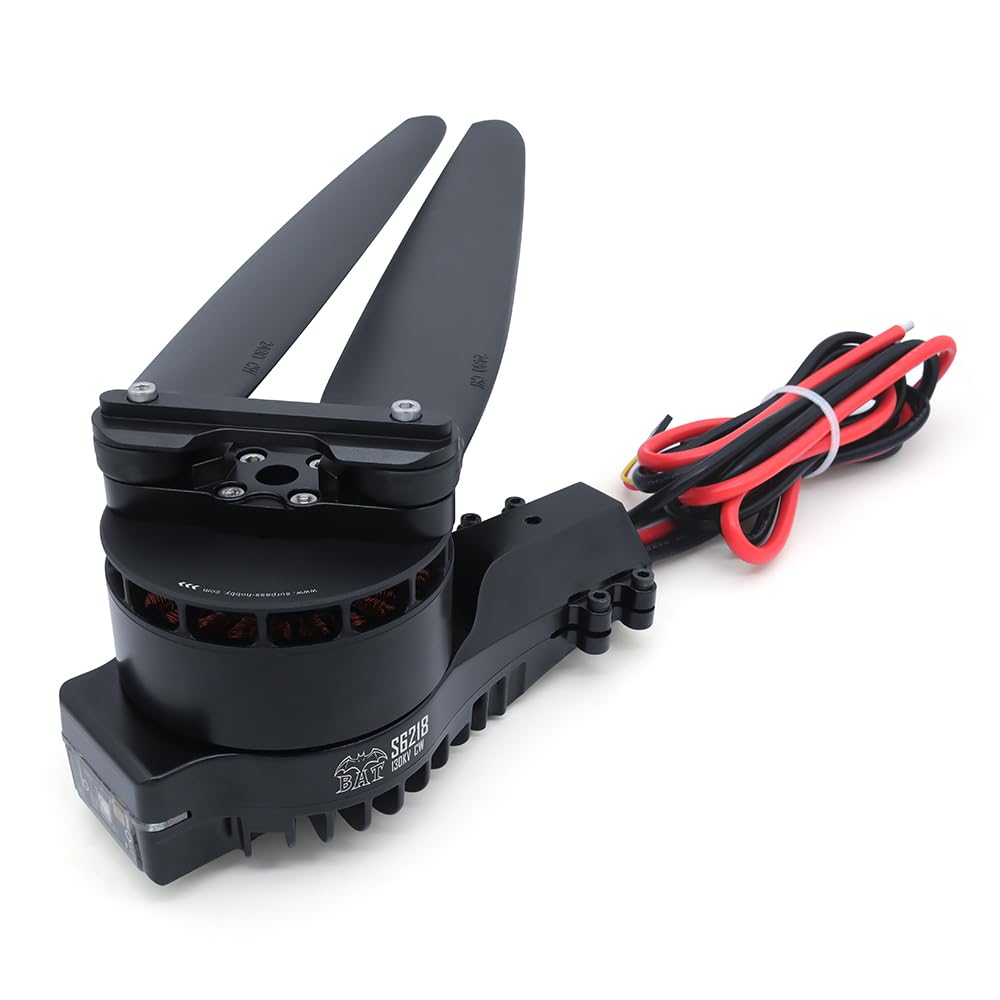

Surpass Hobby S6218 130KV Brushless Motor Thrust 12.3kg for Agricultural Drone UAV Power System (Propeller: 2480 CW)

Brand: Surpass Hobby USA

Features:

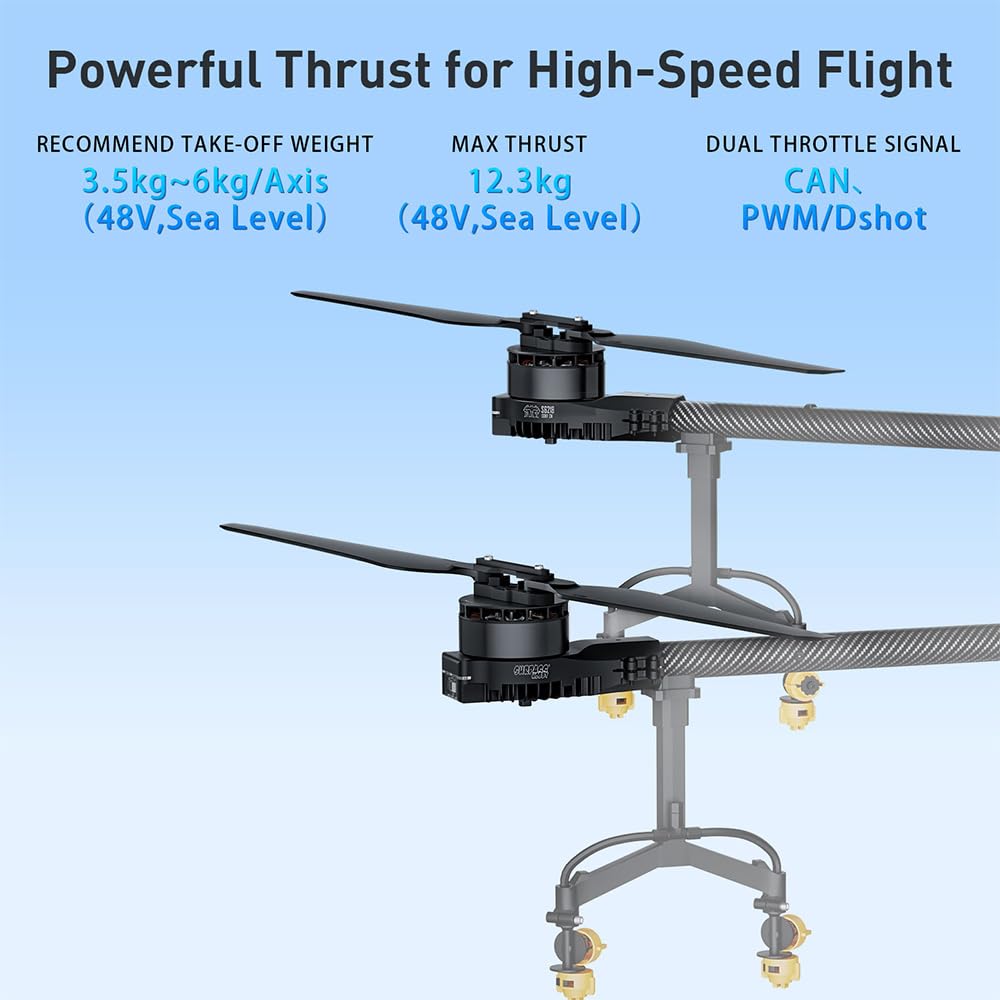

• High Load and Thrust Capacity: Designed to support 3.5-6.0 kg per rotor payload requirements, with a maximum thrust of 12.3 kg per rotor, providing powerful support for agricultural operations,S6 Brushless Power System is a high-performance power solution specifically designed for agricultural spraying applications.

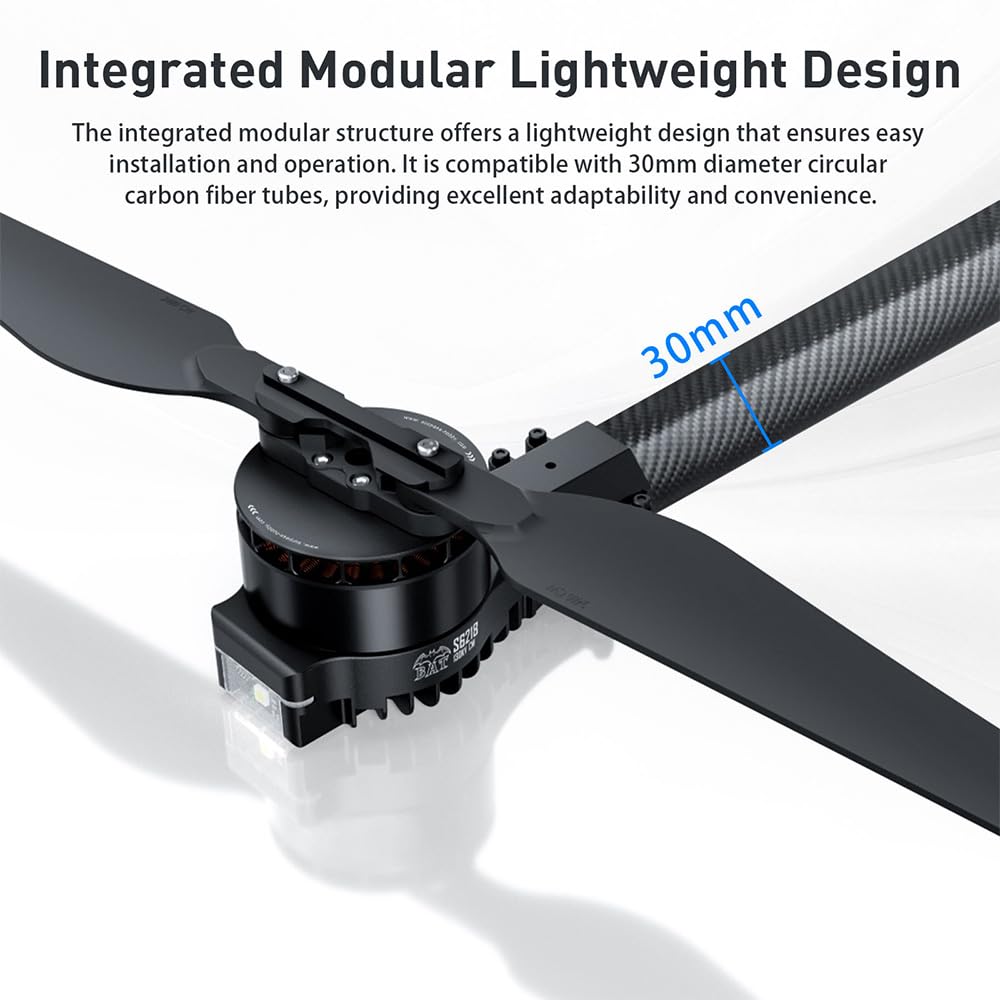

• Arm Compatibility: Precisely matched to 30mm diameter carbon fiber arms, ensuring easy installation,reliable fit, and broad compatibility with mainstream agricultural UAV structures.

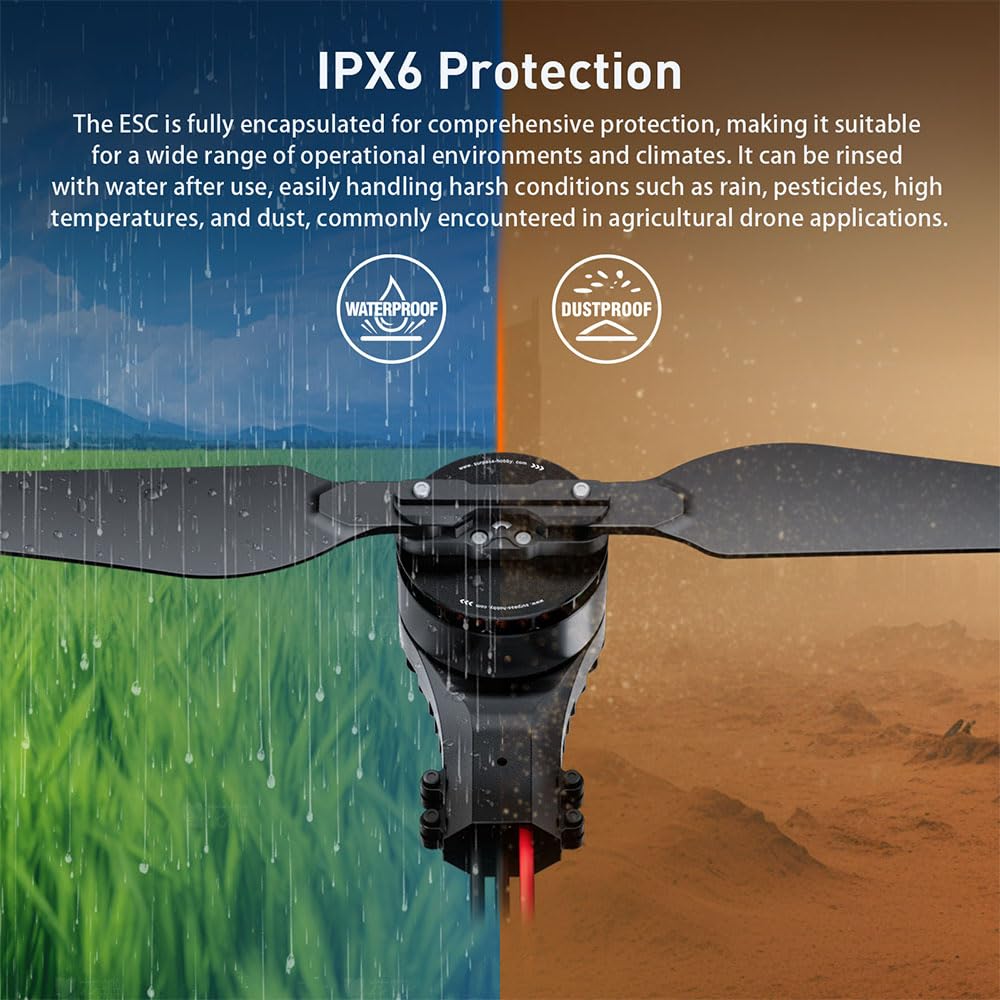

• Environmental Durability: Rated at IPX6 waterproof level, capable of withstanding rain and pesticide corrosion. It also provides strong resistance to salt spray, hightemperatures, dust, mud, and sand, with excellent impactresistance, ensuring reliable performance in complex agricultural environments.

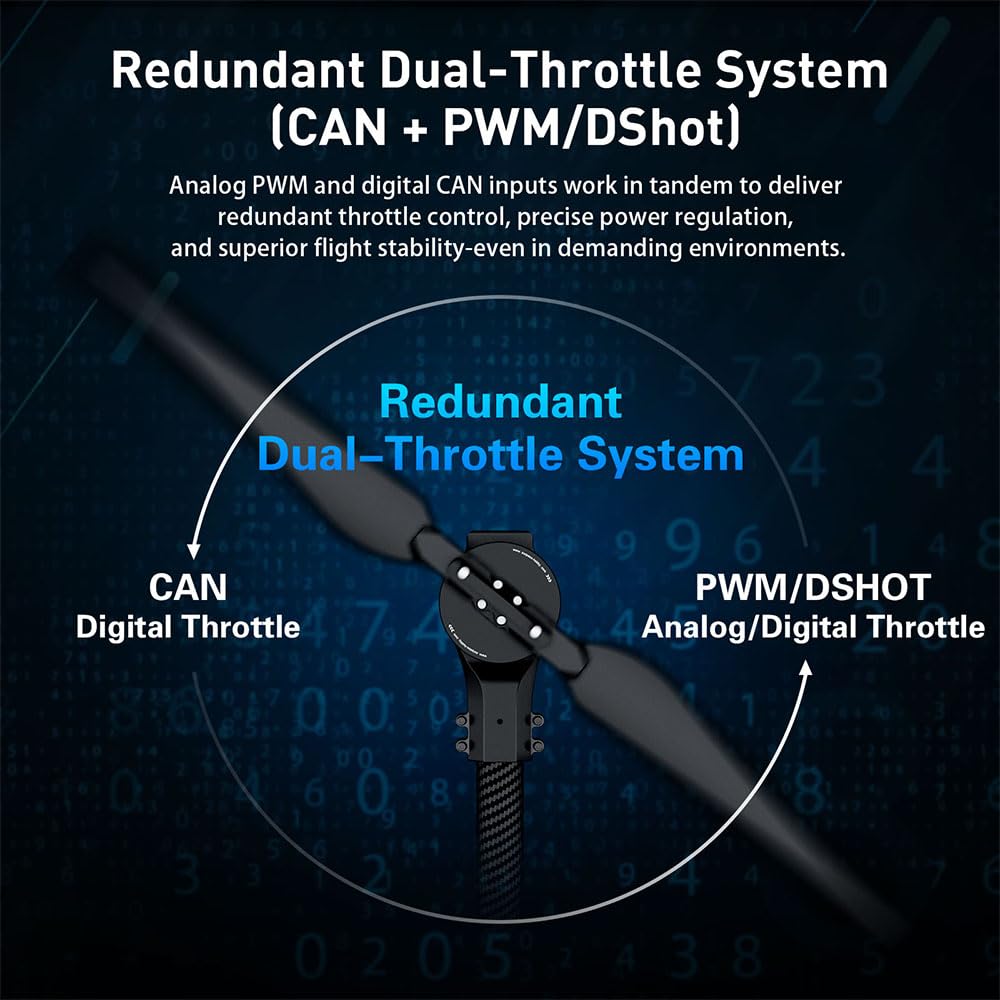

• Precision Control and Stable Flight: Features an optimized FOC (Field-Oriented Control) ESC - PMSM (Permanent Magnet Synchronous Motor) system algorithm, supporting PWM/DSHOT throttle and CAN throttle dual modes, Interference Resistance Design,PWM/DSHOT throttle signals use magnetic isolation input to effectively block electromagnet icinterference paths, preventing external signal disturbances from affecting throttle signalstability,significantly enhancing flight stability and control precision.
• Premium Performance Advantages and Widely Signal Compatibility : The FOC ESC is strictly matched to motor parameters, delivering high efficiency, low noise, energy regeneration, and smooth throttle linearity, Compatible with PWM/DSHOT throttle signals at refresh rates from 50 to 500 Hz, supporting a wide rangeo flight control systems.
• Data Monitoring and Firmware Upgrade: Utilizes CAN communication to provide real-time monitoring ofthrottle input/output, motor speed, bus current, bus voltage,ESC temperature and ESC status.Supports ESC firmware upgrades via CAN bus for easy functionality updates and optimizations.

Part Number: SH-1

Details: High Load and Thrust Capacity: Designed to support 3.5-6.0 kg per rotor payload requirements, with a maximum thrust of 12.3 kg per rotor, providing powerful support for agricultural operations,S6 Brushless Power System is a high-performance power solution specifically designed for agricultural spraying applications.

EAN: 0768330971611

Package Dimensions: 13.6 x 5.8 x 4.4 inches
